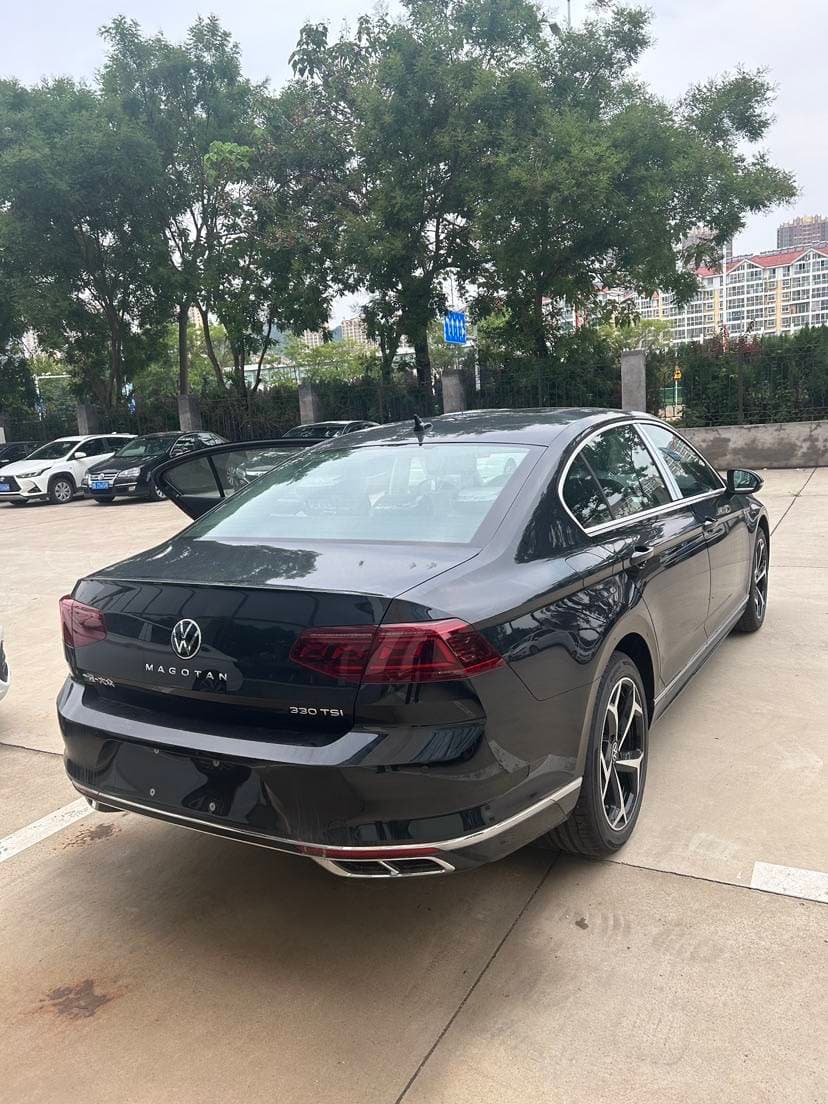

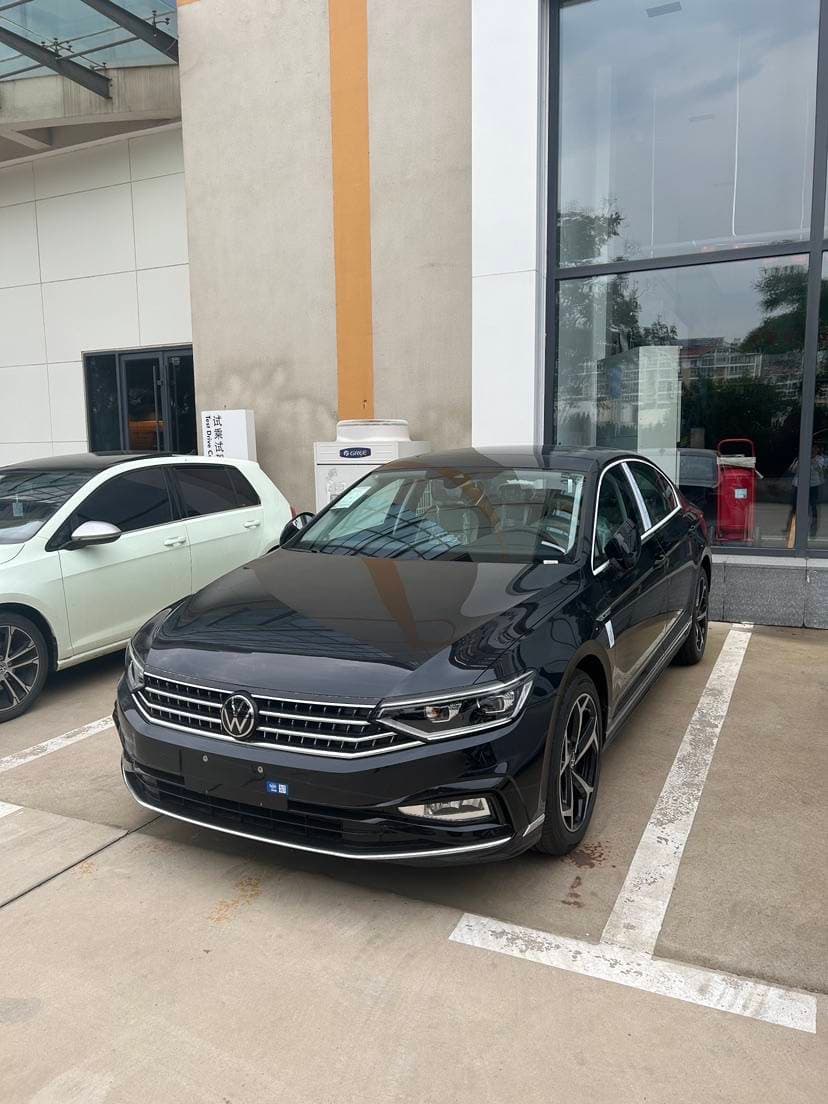

Magotan 2023 2 million Commemorative Edition 330TSI DSG Luxury Model
Phantom Black / Black/White
Bare car
VIN LFV3A*******91MSRP:¥226,900
Basic parameters
StandardOptional-None
- ManufacturerFAW-Volkswagen
- LevelMid-size car
- Energy TypeGasoline
- Environmental standardsGo VI
- Launch time2022.10
- Maximum power (kW)137
- Maximum torque (N·m)320
- Engine2.0T 186 horsepower L4
- Transmission7-speed wet dual clutch
- Length*Width*Height (mm)4866*1832*1479
- Body structureThree-box car
- Maximum speed (km/h)210
- Official 0-100km/h acceleration (s)8.9
- WLTC average fuel consumption (l/100 km)6.38
- Whole vehicle warranty3 years or 100,000 km
Body
StandardOptional-None
- Length (mm)4866
- Width (mm)1832
- Height (mm)1479
- Wheelbase (mm)2871
- Front Track Width (mm)1584
- Rear Wheel Track (mm)1570
- Approach Angle (°)16
- Departure Angle (°)14
- Door opening methodswing door
- Number of doors (pcs)4
- Number of seats (pcs)5
- Fuel tank capacity (L)66
- Cargo capacity (L)533
- Curb weight (kg)1559
- Maximum Gross Vehicle Mass (kg)2030

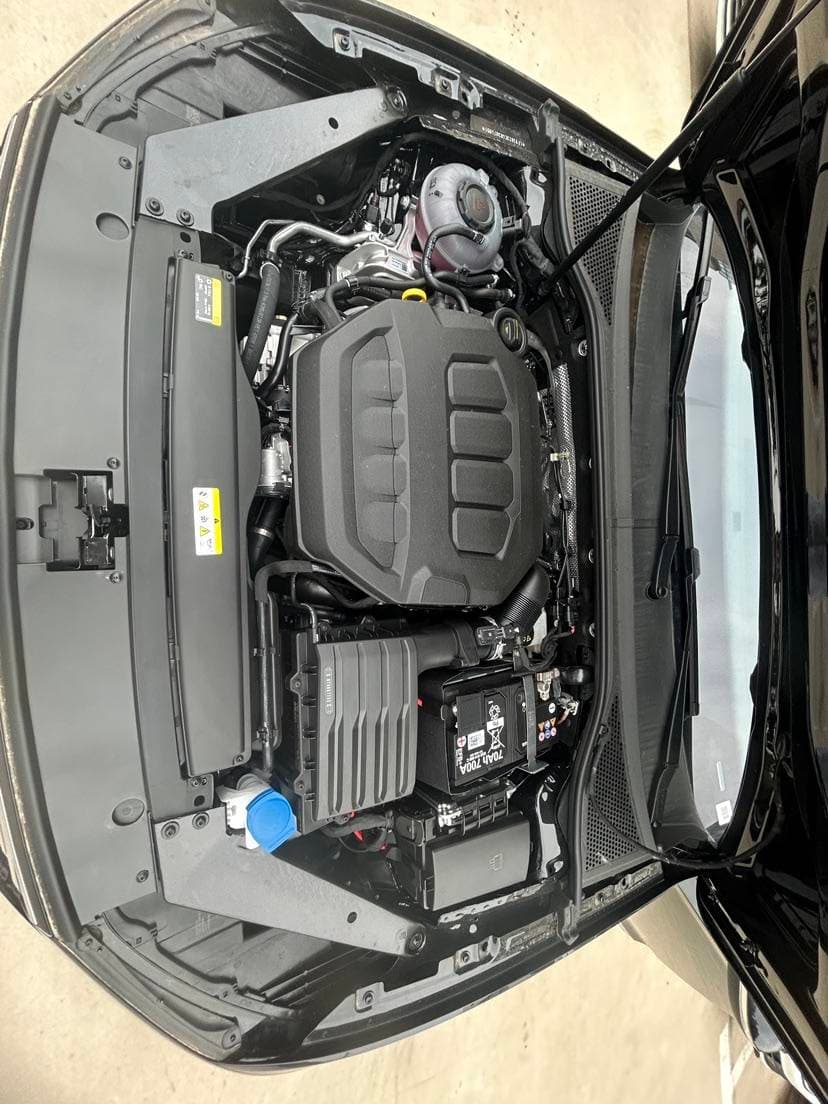

Engine
StandardOptional-None
- Engine ModelEA888-DTH
- Displacement (mL)1984
- Engine displacement (L)2.0
- Intake typeTurbocharging
- Engine layoutHorizontal mounting
- Cylinder arrangementL
- Number of cylinders (pcs)4
- Number of valves per cylinder (pcs)4
- Gas distribution mechanismDOHC
- Maximum power (Ps)186
- Maximum power speed (rpm)4150-6000
- Maximum torque speed (rpm)1600-4050
- Maximum net power (kW)137
- Fuel typeGasoline
- Fuel grade95
- Fuel supply methodDirect injection
- Cylinder head materialAluminum alloy
- Cylinder block materialCast iron
Transmission
StandardOptional-None
- Number of gears7
- Transmission typeWet dual-clutch transmission (DCT)
- Abbreviation7-speed wet dual clutch
Chassis steering
StandardOptional-None
- Drive typeFront engine front drive
- Front suspension typeMacPherson type independent suspension system
- Rear suspension typeMulti-link independent suspension
- Power steering typeElectric power steering
- Body structurecarrying
Wheel brake
StandardOptional-None
- Front brake typeVentilated disc
- Rear Brake TypeDisc
- Parking brake typeElectronic parking

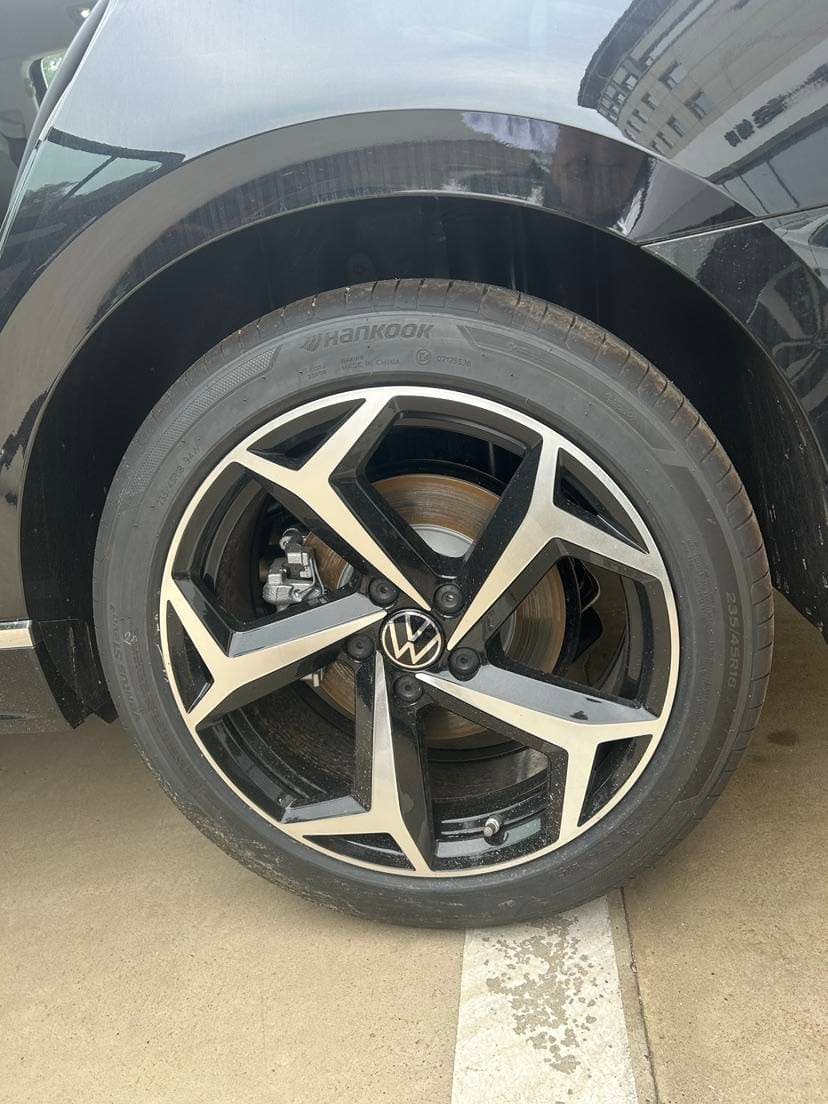

- Front tire specification235/45 R18
- Rear Tire Size235/45 R18
- Spare tire sizeNot full size
Passive safety
StandardOptional-None
- Driver and passenger airbagMain ● / Sub ●
- Front/Rear side airbagsFront ● / Rear ●
- Front/Rear Head Airbag (Curtain)Front ● / Rear ●
- Knee airbag●
- Tire pressure monitoring function● Tire pressure display
- Tires that maintain pressure-
- Seat Belt Not Fastened Reminder● Front row
- ISOFIX child seat connector●
- ABS anti-lock system●
- Brake force distribution (EBD/CBC etc.)●
- Brake Assist (EBA/BAS/BA etc.)●
- Traction control (ASR/TCS/TRC etc.)●
- Body Stability Control (ESC/ESP/DSC etc.)●
Active safety
StandardOptional-None
- Lane Departure Warning System●
- Active braking/active safety system●
- Fatigue driving warning●
- Forward Collision Warning●
Driving control
StandardOptional-None
- Driving mode switching● Sports
- Engine start-stop technology●
- Energy recovery system●
- Automatic parking●
- Hill Assist●
- Hill Descent Control-
Driving hardware
StandardOptional-None
- Front / Rear Parking RadarFront ● / Rear ●
- Driver assistance systems● Reversing camera
Driving functions
StandardOptional-None
- Cruise system● Full-speed adaptive cruise control
- Driver Assistance System● IQ. Drive
- Driver assistance level● L2
- Blind Spot Detection System When Reversing●
- Satellite navigation system●
- Navigation road condition information display●
- Lane Keeping Assist○
- Lane Keeping Assist System●
- Keep to the middle lane●
- Road Sign Recognition●
- Steering wheel hand detection●
Exterior/Anti-theft
StandardOptional-None
- Wheel material● Alloys
- Power Tailgate●
- Sensor Liftgate●
- Electronic Engine Immobilizer●
- Interior central locking system●
- Key type● Remote key
- Keyless Start System●
- Keyless entry function● Entire vehicle
Exterior lights
StandardOptional-None
- Low beam light source● LED
- High beam light source● LED
- Lighting Features○ Matrix
- LED Daytime Running Lights●
- Adaptive headlights○
- Automatic headlights●
- Turn assist lamp●
- Steering headlamps○
- Front fog lights● LED
- Adjustable headlight height●
- Headlights Delay Off●
Sunroof/Glass
StandardOptional-None
- Sunroof type● Electric panoramic sunroof
- Front and rear electric windowsFront ● / Rear ●
- One-touch window up and down function● Entire vehicle
- Window anti-pinch function●
- Car interior mirror● Driver's seat + light bulb ● Passenger seat + light
- Rear wiper-
- Rain Sensor Function● Rain sensor
Exterior mirror
StandardOptional-None
- Exterior mirror function● Electric adjustment ● Electric folding ○ Rearview Mirror Memory ● Side mirror heating ○ Automatic lowering when reversing ● Automatic folding when locking the car
Screen/System
StandardOptional-None
- Center Console Color Screen● Touchscreen LCD
- Central Control Screen Size● 9.2 inch
- Bluetooth / Hands-free phone●
- Phone connectivity/mirroring● Supports CarPlay
- Voice Recognition Control System● Multimedia system ● Navigation ● Phone
- Vehicle intelligent system● MOS Smart Car Connection
Smart configuration
StandardOptional-None
- Internet of Vehicles●
- 4G/5G network● 4G
- OTA update-
- Mobile APP Remote Function●

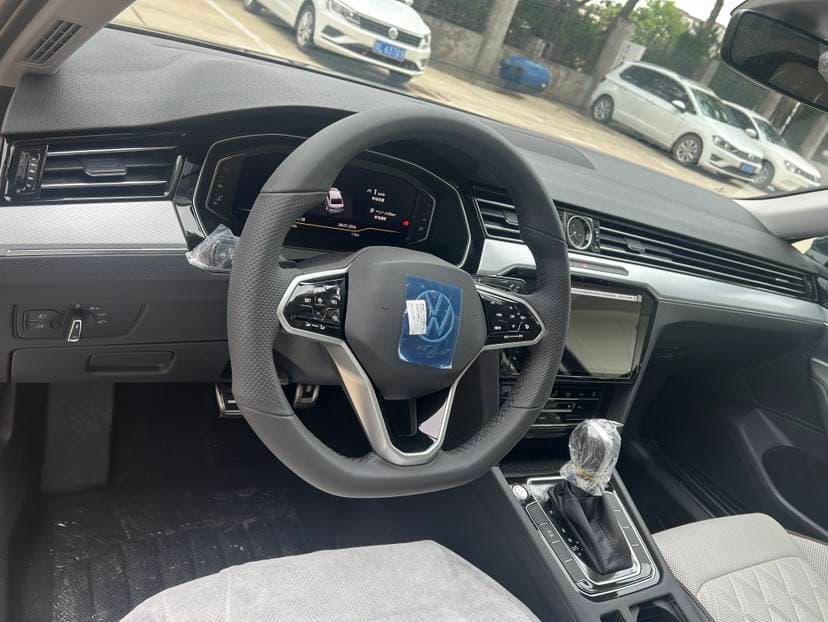

Steering wheel/interior mirror
StandardOptional-None
- Steering wheel material● Genuine leather
- Steering wheel position adjustment● Manual up-down + forward-backward adjustment
- Gear type● Mechanical gear shift
- Multifunctional steering wheel●
- Steering control●
- Steering wheel heating●
- Steering wheel memory-
- On-board computer display screen● Colorful

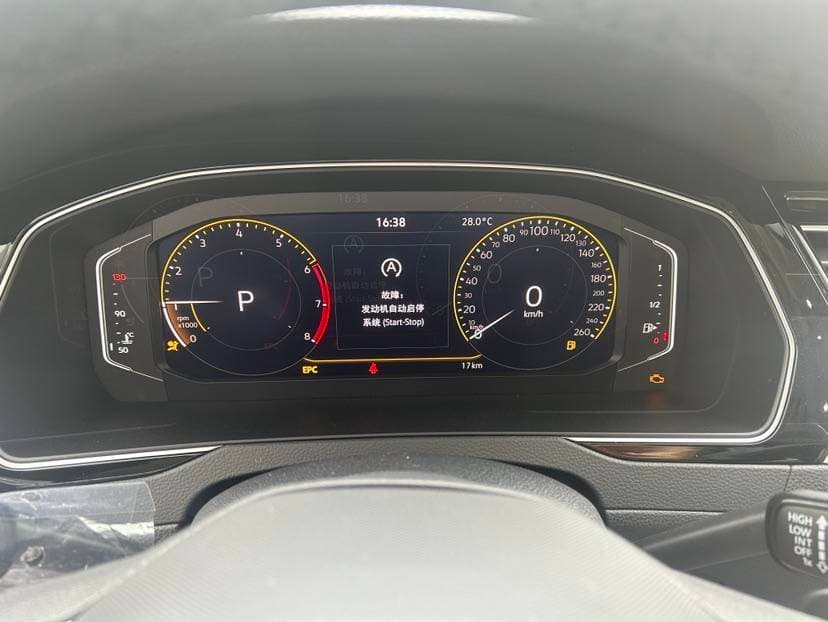

- Full LCD dashboard●
- LCD instrument size● 10.3 inch
- Interior rearview mirror function● Automatic dimming
- ETC device○
In-car charging
StandardOptional-None
- Multimedia / Charging Port● USB ● Type-C
- Number of USB/Type-C ports● Front 3/Rear 2
- Mobile phone wireless charging feature-

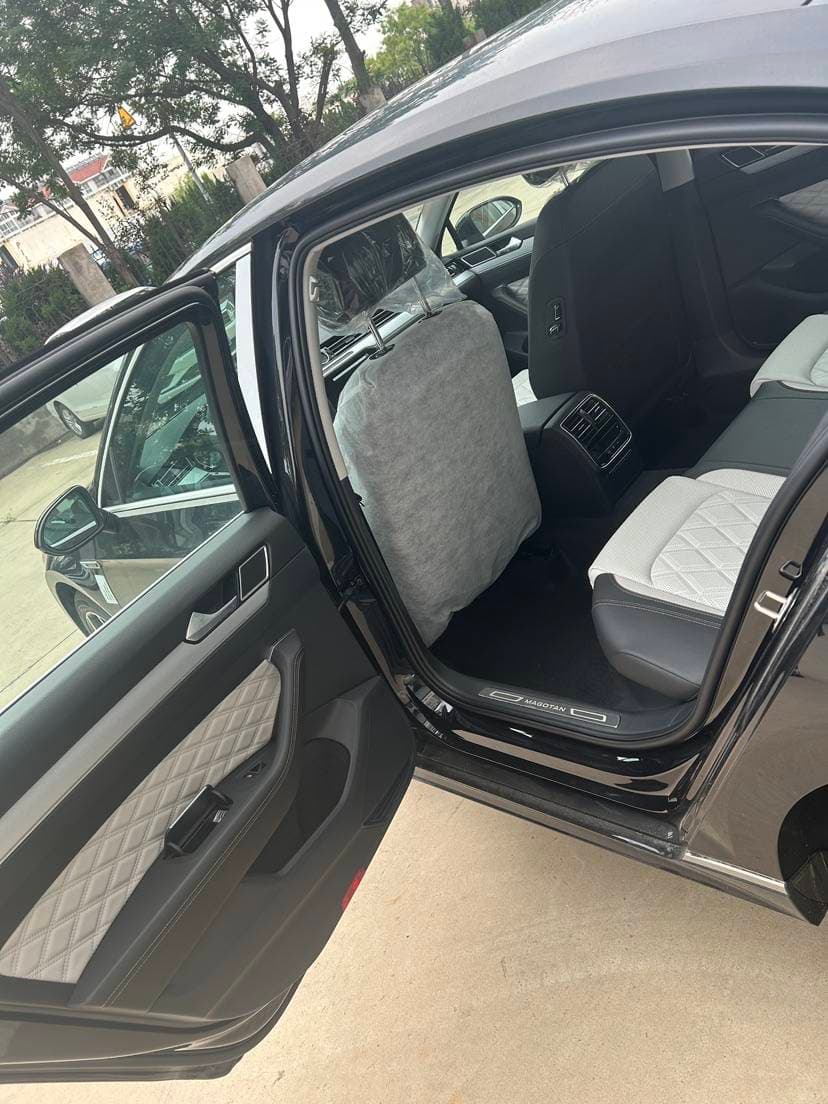

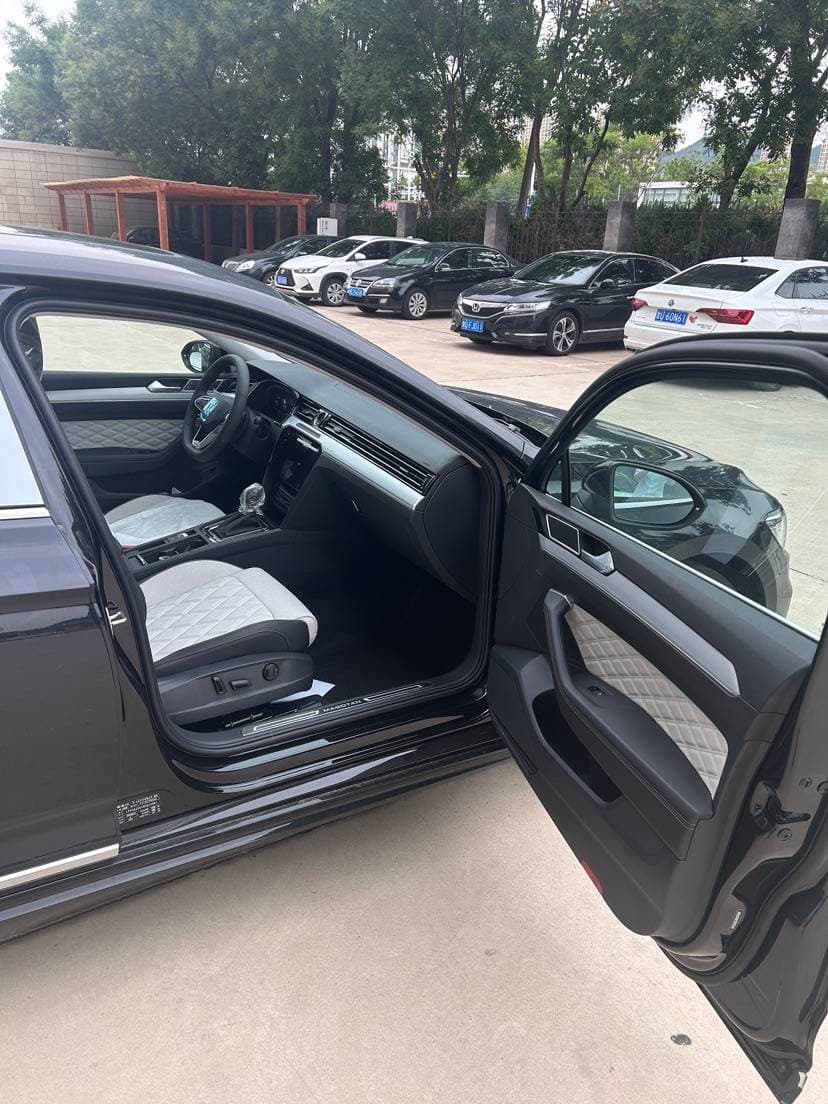

Seat configuration
StandardOptional-None
- Seat material● Faux leather
- Main seat adjustment method● Forward-backward adjustment ● Backrest adjustment ● Height adjustment (4 directions) ● Lumbar support (4 directions)
- Passenger seat adjustment method● Forward-backward adjustment ● Backrest adjustment ● Height adjustment (4 directions) ● Lumbar support (4 directions)
- Driver/Passenger Seat Electric AdjustmentMain ● / Sub ●
- Front seat functions● Heating ● Ventilation
- Electric seat memory function○ Driver's seat
- Passenger Rear Seat Adjustment Button●
- Second row seat adjustment-
- Rear seat folding type● Proportionally recline
- Front/Rear Center ArmrestFront ● / Rear ●
- Rear cup holder●
Audio/Interior lighting
StandardOptional-None
- Speaker brand name-
- Number of speakers● 8 speakers
- Interior ambient lighting design● 30 colors
Air conditioner/refrigerator
StandardOptional-None
- Air conditioning temperature control method● Automatic air conditioning
- Rear independent air conditioner●
- Rear seat air vents●
- Temperature zone control●
- Car Air Purifier●
- In-car PM2.5 filter●
Optional package
StandardOptional-None
- Exterior colorOption Package 10
